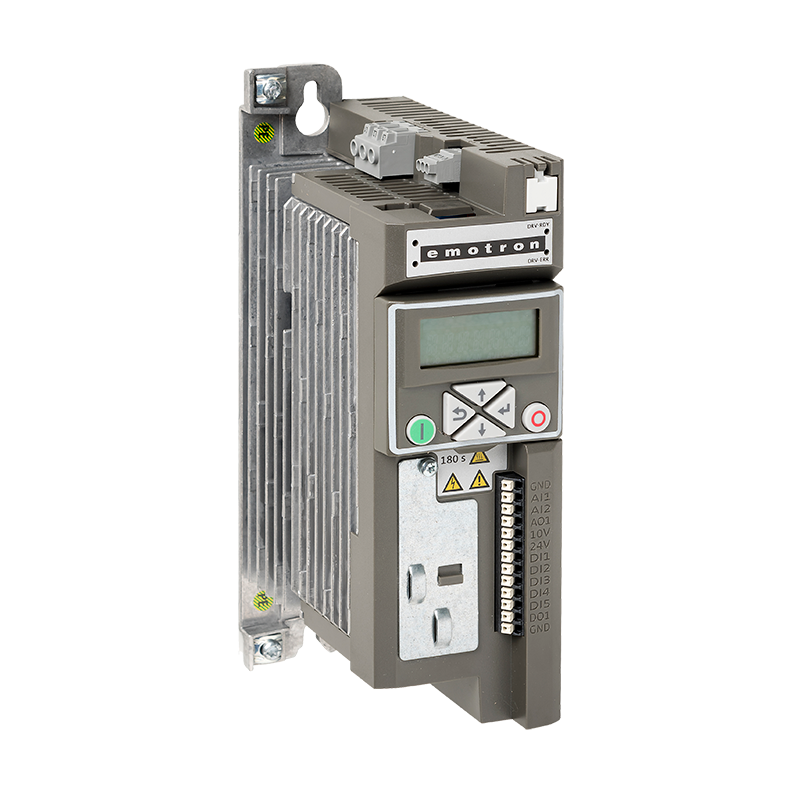

VS10/30 AC Drives

The Emotron VS10/30 Variable Frequency Drive is small in size but big on features. The compact format offers flexible installation and the user-friendly set-up means your system will be operational in no time. Emotron VS10 and VS30 Drives offer reliable and cost-efficient operation of your pumps, fans, and compressors, as well as constant torque applications. The complete series covers motors in the power range of 0.33 - 10 HP (0.25 - 7.5 kW).

Key Features

1.1 - 16.5 Amps
NEMA 250 / IP20 enclosure
Sensor-less vector control
S-shaped ramps for smooth acceleration
Memory module for parameter back-up
Phase and current protection
Load-loss monitoring
Fieldbus, Modbus-RTU, USB and WiFi communication options

Compact & Flexible

The compact format offers flexible installation and the user-friendly setup will have your system up and running in no time.

Emotron VS10 and VS30 offer reliable and cost-efficient operation of both variable and constant torque applications, including pumps, fans, compressors, conveyors, and more!

User-Friendly

With VS10/30, flexibility begins with the compact bookshelf design, which makes the units easy to install, and extends to their user-friendly setup procedure. Systems using the VS10 and VS30 Drives will be up and running in no time, ready to deliver smooth and cost-effective control of your application.

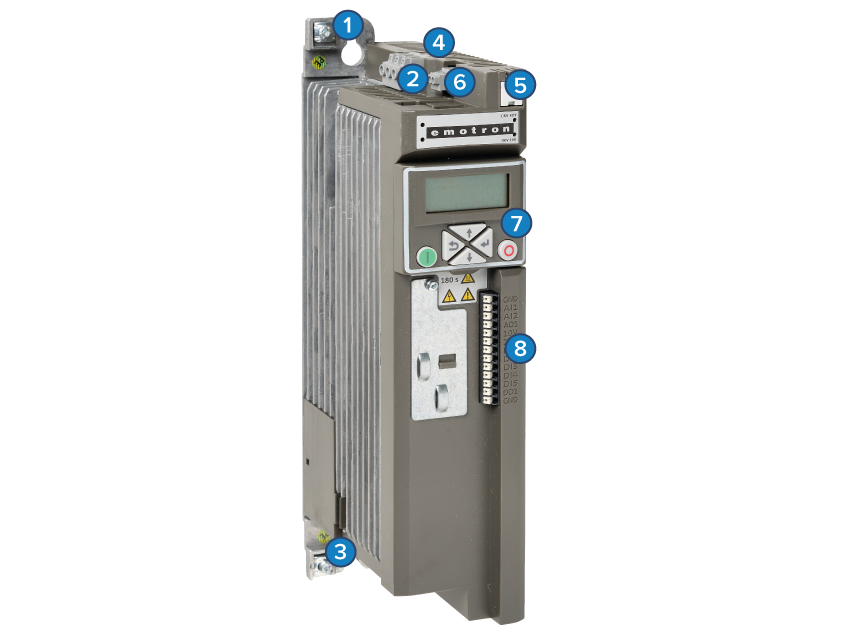

COMPACT & EFFICIENT DESIGN

Key-hole mounting
Main Power Supply (removable connector ≤ 2.2kW)
Motor Power Terminal (removable connector ≤ 2.2kW)
Relay output
Memory module (parameter backup)
CAN connection with shield plate fixation (option)
HMI interface: Control panel hot-pluggable (option)
I/O Terminal with shield plate (removable terminals > 2.2kW

Product Literature

VS10 & VS30 Product Leaflet: English

VS10 & VS30 Mounting and Switch on Instruction: English

VS10 & VS30 Operation Instruction: English

VS10 & VS30 Quick Reference Card: English

VS10 & VS30 - UL version, Mounting and Switch on Instruction: English

VS30 Mounting and Switch on Instruction: English

VS30 - UL version, Mounting and Switch on Instruction: English

Additional resources, such as drilling templates, quality and conformity documentation, communication options and more are available upon request.

Technical Data

Specifications
Rated Power	VS10: 0.25 - 2.2kW / 0.33 - 3.0HP VS30-23: 0.25 - 2.2kW / 0.33 - 3.0HP VS30-40: 0.37 - 7.5kW / 0.5 - 10HP
Supply Voltage	VS10: 1-Phase, 190 - 240VAC ±10% VS30-23: 1/3-Phase, 190-240VAC ±10% VS30-40: 3-Phase, 380-480VAC ±10%
Rated Current	VS10: 1.7 - 9.6A VS30-23: 1.7 - 9.6A VS30-40: 1.3 - 16.5A @400VAC / 1.1 - 14A @480VAC
Protection Class	NEMA 250 / IP20
Approvals	CE, UL, cUL, RoHS2

VS10 & VS30 IN YOUR INDUSTRY

VS10/30 for Agriculture

The VS10/30 Drives feature a compact footprint and flexible installation for an array of applications.
VS10/30 for Chemical & Petrochemical

VS10/30 will optimize your applications and reduce operating costs - featuring efficiency class IE2.
VS10/30 for Food & Beverage

VS10/30 offers advanced functionality for an array of applications commonly found in Food & Beverage facilities.
VS10/30 for Marine

Ideal for a multitude of demanding Marine applications.
VS10/30 for Oil & Gas

User-friendly setup and a small footprint make VS10/30 ideal for Oil & Gas applications.
VS10/30 for Process Manufacturing

VS10/30 allows for cost-efficient operation of your pumps, fans, compressors, and more!
VS10/30 for Transportation

Control of motor driven applications in the transportation industry.

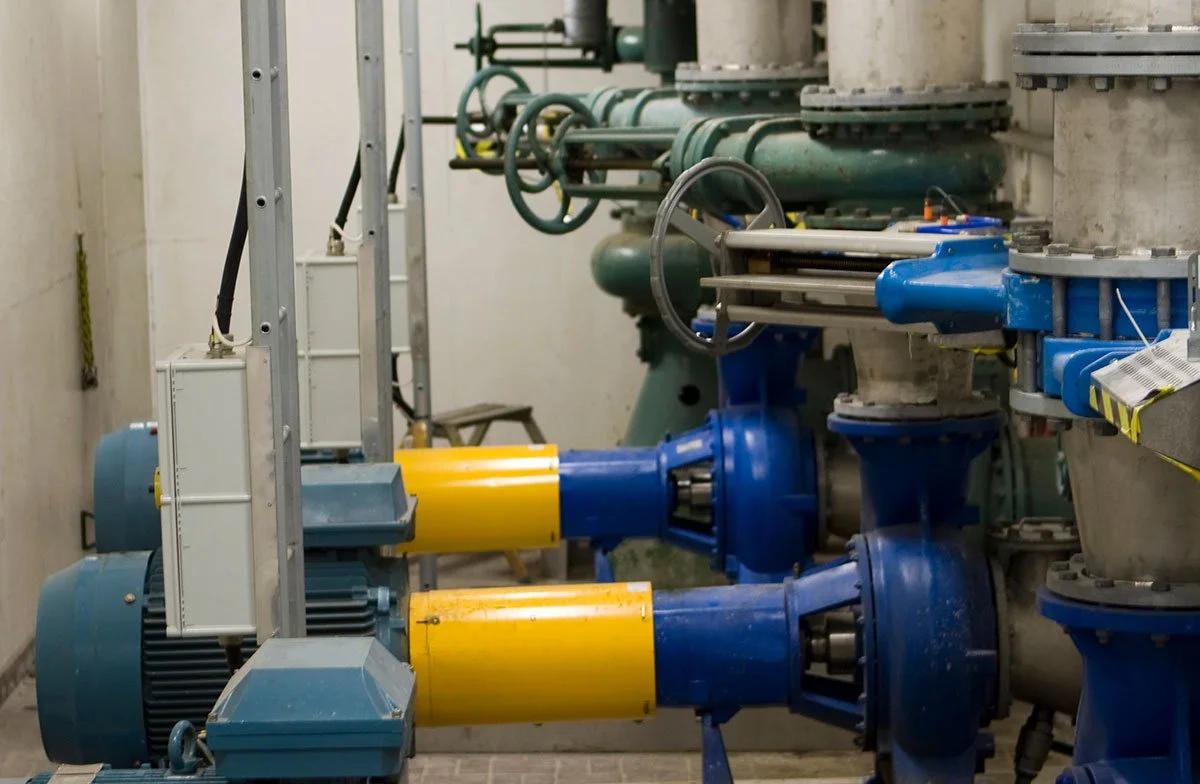

VS10/30 for Water & Wastewater
