FDU

FDU AC DRIVES

Developed for Variable Torque Applications

The Emotron FDU Variable Frequency Drive offers unmatched performance and control for variable torque applications such as pumps, fans, compressors, and blowers. A wide array of features such as patented Shaft Power Monitoring, and multi-pump control are also standard.

Secure the Flow and Save Energy

The Emotron FDU controls both flow and pressure. It offers efficient and reliable operation of the driven equipment, all while reducing energy and maintenance costs. The series covers powers of up to 4,000 HP (3,000 kW) and is available in both NEMA 12 (IP54) and NEMA 1 (IP20/21) certified enclosures.

KEY FEATURES

  • 3 - 2,500 Amps

  • NEMA-rated enclosure (available in NEMA 1 and NEMA 12 configurations)

  • Unique Shaft Power Load Curve Monitoring and Protection

  • Pump control for up to 7 pumps

  • Automatic Pump Rinsing

  • Sleep function

  • Process language feature, i.e., display GPM

  • Copy function via detachable display keypad

  • Smaller footprint than competing VFDs

BUILT FOR PURPOSE.

The Emotron FDU is available in both NEMA 1 (IP20/21) and NEMA 12 (IP54) configurations. The robust steel construction of the NEMA 12 version means that the drive can be installed close to the application, reducing the cost of additional cabinets and motor cables. The 300 - 1,500A units (NEMA 1 classified) are also available in compact CG-designed NEMA 12 cabinets. The 25 - 244A, NEMA 1 series units are optimized for mounting in control cabinets or on an electrical room wall. Its robust yet compact design allows for easy access to power terminals.

About: Discover the EmoDrive App for Emotron Variable Frequency Drives.

About: A new range of Emotron drives and soft starters is here!

Case Study: Delivering onshore power supply to the Port of Visby.

About: Getting to know Emotron products from CG Drives & Automation.

About: Commissioning with the EmoDrive App.

About: Everyday life using the EmoDrive App.

About: Troubleshooting and data analysis with the EmoDrive App.

Product Literature

FDU complete range NEMA 1 (IP20) and NEMA 12 (IP54) 690V portfolio: English

FDU/VFX IP20/21, Product brochure: English

FDU/VFX 2.1 Technical Catalog: English

FDU 2.1 High Power - Product brochure: English

Addendum FDU/VFX 2.1: English

Addendum Ferrite Core for FDU 48-090 and VFX 48-090: English

Addendum - Quick coupling for liquid cooled FDU/VFX 2.0 frame sizes E & F: English

FDU 2.0 Instruction manual: English

FDU 2.0 Quick setup guide: English

FDU 2.1 Instruction manual: English

Additional resources, such as drilling templates, quality and conformity documentation, communication options and more are available upon request.

Technical Data
Specifications (NEMA1 / IP20/21 version)
Rated Power 15 - 175HP (11 - 132kW)
Supply Voltage 3 x 230 - 480VAC
Rated Current 25 - 244 Amps
Protection Class NEMA 1 / IP20/21
Approvals Global Standards

Specifications (NEMA12 / IP54 version)
Rated Power 1 - 4,000HP (0.75 - 3,000kW)
Supply Voltage 3 x 230 - 690VAC
Rated Current 2.5 - 2,500 Amps
Protection Class NEMA 12 / IP54
Approvals CE, UL, DNV, GOST R


  • Protection from damage and downtime

    Soft starts and stops protect your equipment. Reduced start currents result in smaller fuses, cables, and energy bills. Controlled stops eliminate the risk of water hammer and other costly damage.

    A built-in shaft power monitor and unique Load Curve Protection function protect your process by immediately detecting any situation that could cause inefficiency or damage. Early warning and safety stops allow preventative action.

  • Energy Savings & Optimized Operation

    The FDU regulates flow and pressure by continuously adapting motor speed. No energy wasted and no unnecessary equipment wear. Sleep and automatic pump rinsing functions further reduce energy and increase efficiency.

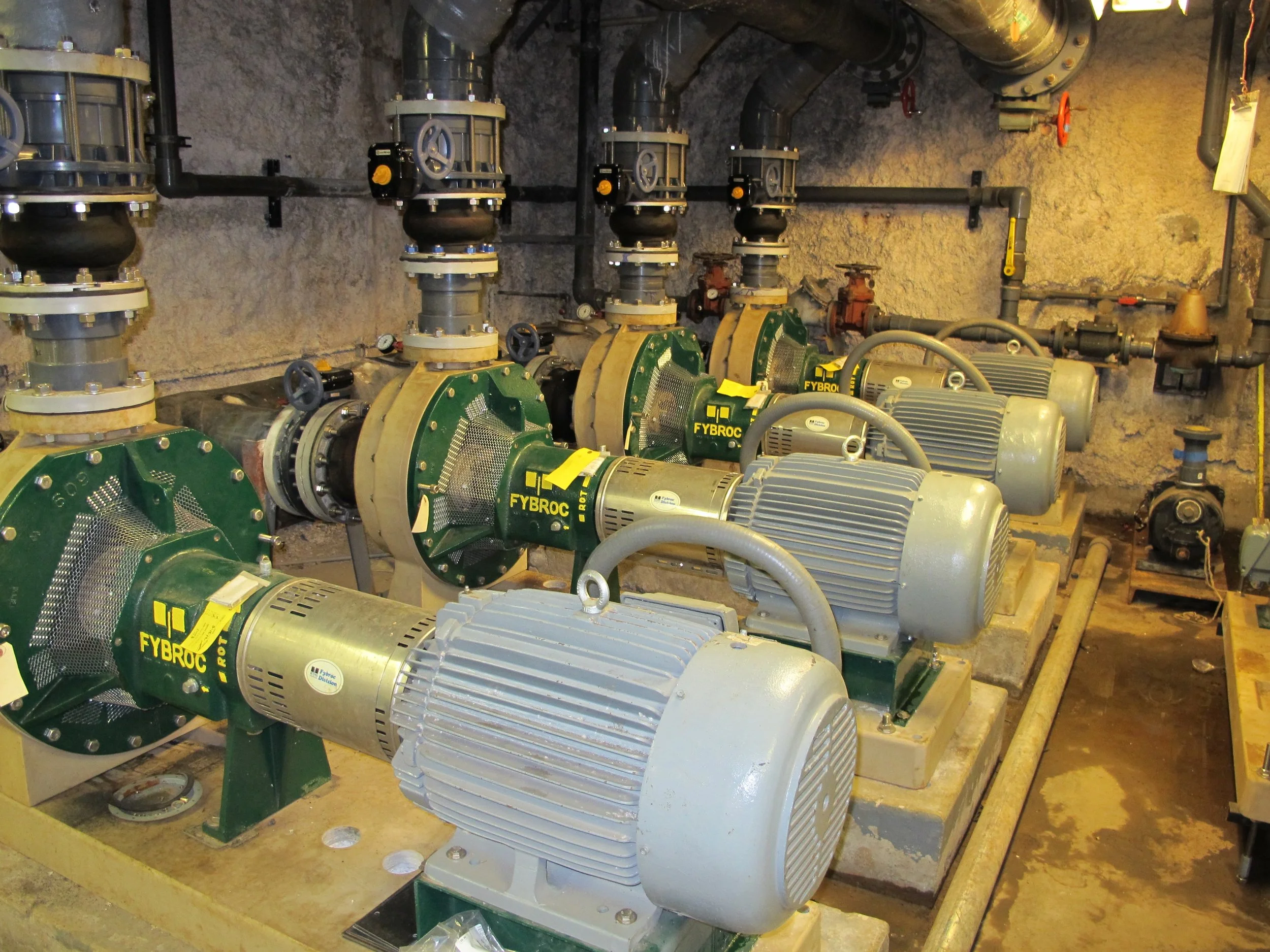

    Multiple pump or compressor control is a reliable and cost-efficient method of keeping a constant flow or pressure despite varying demands. The FDU can control up to seven pumps.

  • User-Friendly & Reliable Operation

    Operation parameters can be set in your own process unit - m3/min, bar, Pascal, etc. - making monitoring easier and more reliable. The removeable control panel has a copy function for transferring settings to other FDU units.

    Switching between local and remote control can be accomplished with the push of a single key on the control panel. The virtual connection of logical functions, comparators, and timers, means no cables or external I/Os are required.

FDU IN YOUR INDUSTRY

Agriculture

With automation of processes and protection against equipment failure, the FDU is capable of improving overall efficiency and reducing overhead.

Chemical & Petrochemical

It's rugged construction, coupled with a wide array of advanced functionality make FDU ideal for the tough applications commonly found in Oil & Gas facilities.

It's rugged construction, coupled with a wide array of advanced functionality make FDU ideal for the tough applications commonly found in Oil & Gas facilities.

Food & Beverage

FDU offers advanced functionality for an array of applications commonly found in Food & Beverage facilities.

Marine

Ideal for a multitude of demanding Marine applications.

Oil & Gas

FDU AC Drives are the ideal solution for the various challenging applications found in onshore and offshore Oil & Gas facilities.

Process Manufacturing

FDU increases productivity and reduces unnecessary downtime and equipment failure.

Transportation

Flow control for applications in the transportation industry.

Water & Wastewater

Suitable for a wide range of W&WW applications, such as pumps, clarifiers, blowers, and more!
